Accelerating Toward Net-Zero with Hydrogen and Simulation

  • 2024-03-11 ---

  • Hydrogen shows promise in helping to reduce greenhouse gas emissions and assisting major economic sectors in achieving their Carbon objectives by 2050. That’s the date many countries agreed to during a climate change summit in 2021, and that the European Union, the United Kingdom and other countries have already made legally binding. To meet that goal will require an overhaul of energy use for many industries and the advancement of a number of emerging technologies, according to the International Energy Agency.

    SYNERGY ACROSS INDUSTRIES POINTS TO HYDROGEN ADOPTION

    Hydrogen could be a significant part of the solution for Carbon neutrality. There are synergies among major industries like aerospace, energy, and automotive to establish a sustainable infrastructure network for Hydrogen. It provides many pathways toward sustainability - from energy storage to cleaner energy production and propulsion - while complementing other solutions, such as batteries.

    If we look at any of the industrial sectors in detail, we can see the potential impact of hydrogen to reduce greenhouse gas emissions. Let’s look at the aviation industry as an example. One proposed roadmap for Carbon proposed for the aviation industry (see Figure 1) shows that only a sustainable fuel, such as Hydrogen, provides a realistic path to by 2050. It’s important to note that electrification will continue to help reduce emissions, especially with short-haul flights, but more than 90% of emissions in the aviation sector are produced by mid - to long-range flights, according to the Air Transport Action Group.

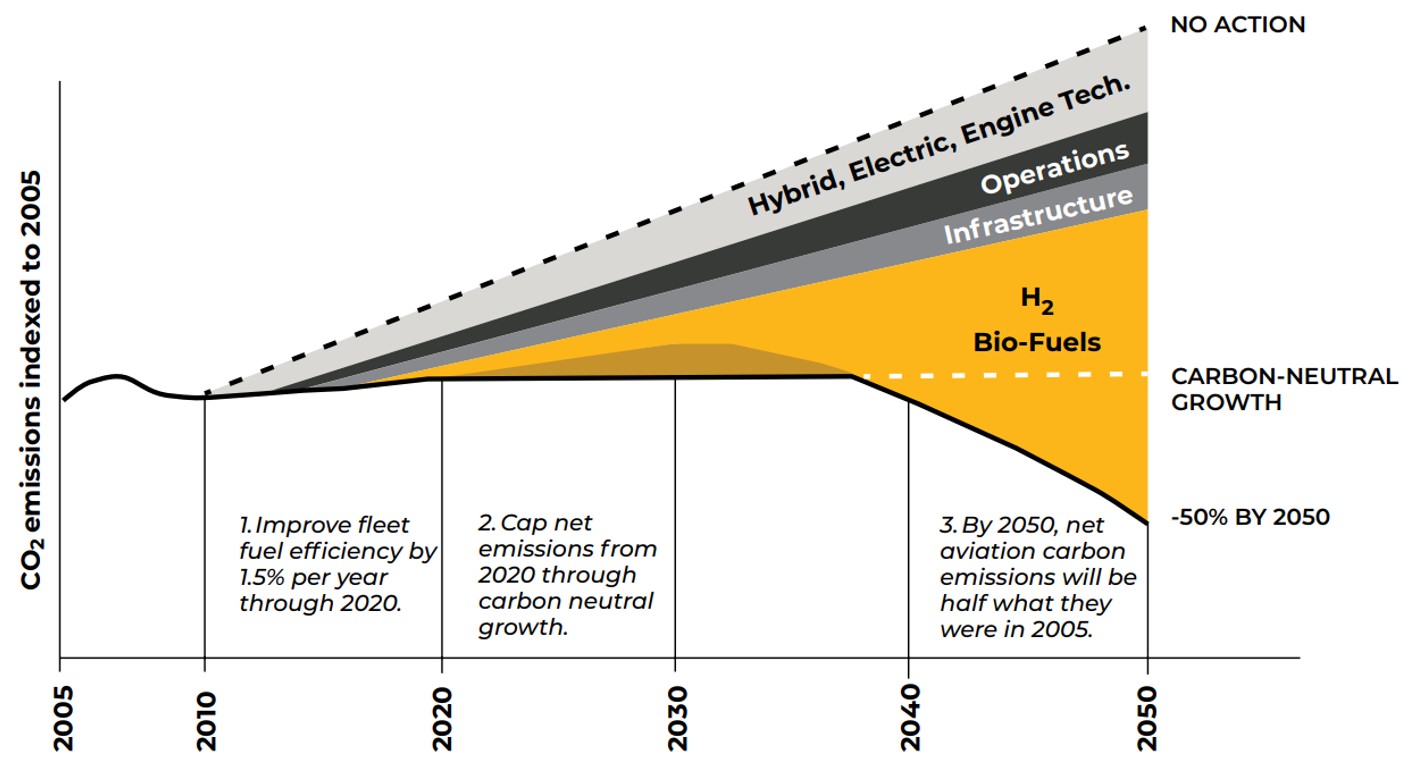

    Figure 1. Aviation sectorʼs commitment to (Source: IATA)

    Similar observations can be made for other sectors where Hydrogen-based solutions must play a critical role alongside other important technologies - such as energy efficiency, batteries, and carbon capture - to achieve the net-zero goal.

    “The decrease of the Carbon content of power and the electrification of many economic activities (e.g., transportation or industry), benefiting from the strong decrease of renewable power costs, are key components of the roadmap for reaching the 1.5°C target by 2050,” says Claude Heller, former Director of Group R&D Programs for Air Liquide who is now a Senior Advisor for the Hydrogen Economy.

    “In the so-called hard-to-abate sectors (e.g., steelmaking or aviation) indirect electrification is possible via Hydrogen produced by water electrolysis with low Carbon power (e.g., renewables or nuclear).”

    “The decrease of the Carbon content of power and the electrification of many economic activities (e.g., transportation or industry), benefiting from the strong decrease of renewable power costs, are key components of the roadmap for reaching the 1.5 °C target by 2050.” - CLAUDE HELLER, Senior Advisor for the Hydrogen Economy

    THREE KEY CHALLENGES IN HYDROGEN OCRATIZATION ACROSS INDUSTRIES

    Three major challenges with Hydrogen democratization are cost, infrastructure and scale.

    1. COST

    The cost of green Hydrogen production (Hydrogen produced using renewable energy) is around $5 per kilogram, which has made it less competitive compared to carbon-heavy fuels such as natural gas or kerosene. The high cost is linked to infrastructure investment and demand, which is now getting a boost because of regulations and proactive actions being taken by governments around the world.

    Figure 2. A proton exchange membrane water electrolysis stack for Hydrogen production (left)
    with optimized cell design through Ansys simulation (right)

    Investment in green Hydrogen now exceeds $1 billion per year. The biggest investment, globally, has come from the European Union, which accounts for more than half of Hydrogen-based project investments in the early part of this decade. The U.S. Department of Energy () launched the Energy Earthshots Initiative in June 2021 for an accelerated energy transition. The first Energy Earthshot, called Hydrogen Shot, targets lowering the cost of green Hydrogen to $1/kg by the end of the decade.

    2. INFRASTRUCTURE

    With a significant investment in a Hydrogen ecosystem, technical challenges related to hydrogen are back in focus. However, significant design challenges at each stage still exist - from its production to storage and transportation, to its end use. One of the major challenges at all stages is the energy efficiency of the devices involved. Fuel cell efficiency currently ranges between 40% and 60%, while the average electrolyzer efficiency is 60%. Significant improvements in efficiency are possible but time-consuming in a traditional build-test-improve design environment.

    For example, Hydrogen shows great promise in decarbonizing aviation and power generation gas turbines because of its high energy density and ability to burn lean. However, burning hydrogen in engines poses several technical challenges, including flashback, acoustic instabilities, autoignition, and flame holding inside the burner.

    Because of its low molecular weight and density, storage of hydrogen in a compact space is also a big challenge. It needs to be heavily compressed or stored in cryogenic/liquid form. The storage tank design, whether it’s flying in the sky on a plane or riding in the back of fuel cell vehicle on the ground, requires special consideration for embrittlement, leakage, and associated safety risk.

    3. SCALE

    Finally, there are end-use challenges related to scaling Hydrogen. The current system size and weight of fuel cells are large, especially for aerospace and automotive applications. Their durability and reliability need to be improved for most transportation applications. Thermal, water, and air management are also challenges when attempting to keep the size of the heat exchanger and overall system small.

    Figure 3. A cryogenic liquid/compressed hydrogen tank design using Ansys Composite PrepPost (ACP) on the left
    and embrittle/crack analysis in Ansys Mechanical on the right

    “Current Hydrogen technologies (e.g., electrolysis or fuel cells) are mature enough to engage the hydrogen economy at scale for decreasing the costs,” says Heller. “In parallel, there is still a need to improve processes in order to decrease the costs beyond the size effect. For that purpose, a better understanding - and the modeling ofelectrochemical reactions at molecular scale and processes at system levels (e.g., cells or stacks) - is essential.”

    SIMULATION TECHNOLOGY ENABLES HYDROGEN ADOPTION

    Ansys technology enables you to overcome the challenges associated with hydrogen by improving performance at every phase of its ecosystem and accelerating new technology development to address the cost and scale conundrum. For example, ENHIGMA, a national project that involves various companies along with technological and research centers, used Ansys technology to manufacture low-cost, energy-efficient, and durable proton exchange membrane (PEM)-based electrolyzers and fuel cells. As shown in Figure 2, Centro Nacional del Hidrógeno (CNH2) researchers optimized the PEM cell stacks using flow simulations in Ansys Fluent.
    Ansys simulation technology is used for individual cell design, cost-effective and lightweight material selection, cell-stack optimization for energy efficiency, and thermal management of the overall fuel cell and electrolysis system.

    Cryogenic storage and transport are at the core of the Hydrogen ecosystem. Ansys composites solutions can be used to design vessels while closely mimicking their manufacturing process. The composite failure tool in Ansys Mechanical enables designers to evaluate potential failure modes and failure locations in-depth using advanced composite failure criteria such as Tsai-Wu, Puck, and LaRC. It can further be used to understand the effect of embrittlement and crack initiation and propagation, as shown in Figure 3. Hydrogen-powered gas turbine engines provide the most promising path for decarbonization efforts in the energy and aviation sector. The most complex technical challenges of Hydrogen combustion - such as flashback, acoustic instabilities, and autoignition - can be characterized and addressed with high-fidelity simulations. Figure 4 shows validation of simulation methodology in Fluent for Hydrogen combustion against experimental data.

    Finally, advanced digitalization technologies, such as digital twins and reduced-order models (s), can be used to optimize the operations of Hydrogen-based systems. s are simplifications of high-fidelity, complex models. They capture the behavior of source models so that engineers can quickly study a system’s dominant effects using minimal computational resources.

    A typical hydrogen production system or Hydrogen-based fuel cell plant contains many components. Most of these can be represented by a simplified model, but most critical parts - such as fuel cells or PEM-cell stacks - can be represented by a derived from Ansys 3D physics solvers. creation for this digital twin is enabled by Ansys optiSLang, which automates the simulation toolchain and connects to algorithms for robust design optimization (RDO). With connection to live sensor data, this digital twin can monitor and optimize operations while enabling predictive maintenance.

    By empowering engineers to explore more Hydrogen design options faster and more affordably, simulation will help meet the top challenges related to increased hydrogen adoption. Being able to design and test hydrogen-related technologies in a virtual environment speeds time-to-market, which is critical as governments and industries rush to meet the 2050 net-zero carbon goals.
